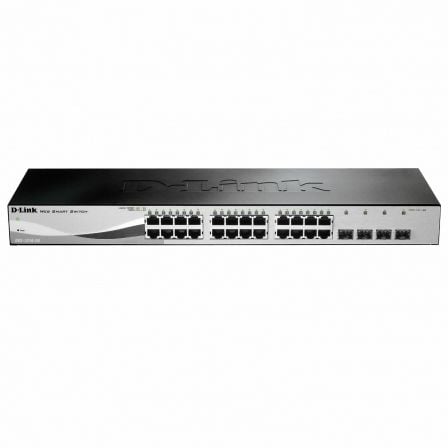

Switch Gestionable D-Link DGS-1210-28 28 Puertos/ RJ-45 Gigabit 10/100/1000/ SFP

“

Especificaciones técnicas

”

‘
• Interfaz

‘

‘
• 24 x 10/100/1000BASE-T

‘

• 4 x 100/1000Mbps combo

‘

‘

• Estándar

‘

‘
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

‘

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

‘

• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic

‘

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)

‘

• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic

‘

• IEEE 802.3az Energy Efficient Ethernet (EEE)

‘

• IEEE 802.3x Flow Control

‘

‘

• Cables Red
  ‘

‘

‘
• UTP Cat. 5, Cat. 5e (100 m max.)
  ‘

‘

‘

• Duplex Mode
  ‘

‘

‘
• Full/Half-duplex for 10/100 Mbps
  ‘

‘

• Full-duplex for 1000 Mbps
  ‘

‘

‘

• Interfaz Media Intercambio
  ‘

‘

‘
• Ajuste automático MDI/MDIX para todos los puertos de par trenzado
  ‘

‘

‘

• Ahorro de energía

‘

‘
• Link Status detection

‘

• LED Shut-Off

‘

• Port Shut-Off

‘

• System Hibernation

‘

• Time-based PoE (DGS-1210-10P/28P/52P/52MP only)

‘

‘

• Seguridad

  ‘

‘

‘
• Access Control List secures network

‘

• D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding

‘

• Port Security supports 64 MACs per port

‘

• ARP Spoofing Prevention

‘

‘

• Intuitive Management

  ‘

‘

‘
• D-Link Network Assistant Utility or Web-based GUI

‘

• Built-in SNMP MIB for remote NMS (D-View 6.0)

‘

• Compact CLI through Telnet

‘

‘

• Prestaciones avanzadas

  ‘

‘

‘
• Auto Surveillance VLAN

‘

• Loopback Detection automatically disables a port when a loop is detected

‘

• Cable Diagnostics allows administrators to determine cable status

‘

• SFP ports for flexibility

‘

• Auto MDI/MDIX

‘

‘

• Interface

  ‘

‘

‘
• Puertos 10/100/1000BASE-TX

‘

• DGS-1210-28 – 24 puertos

‘

• Puertos SFP

‘

• DGS-1210-28 – 4 puertos

‘

‘

• Rendimiento

  ‘

‘

‘
• Switch Capacity

‘

• DGS-1210-28- 56 Gbps

‘

• 64-Byte Packet Forwarding Rate

‘

• DGS-1210-28 – 41.7 Mpps

‘

• MAC Address Table Size

‘

• 16K

‘

• Packet Buffer

‘

• DGS-1210-10/20/28- 1.5 MB per device

‘

‘

• Consumo (Standby/Maximum)

  ‘

‘

‘
• DGS-1210-28 – 17.84W / 22.45W

‘

‘

• Power Input

  ‘

‘

‘
• 10 to 240 VAC, 50/60HZ

‘

‘

• Dimensiones (W x D x H)

  ‘

‘

‘
• DGS-1210-28 – 440 x 140 x 44 mm

‘

‘

• Peso

  ‘

‘

‘
• DGS-1210-28 – 1.67 kg

‘

‘

• Certificaciones

  ‘

‘

‘
• CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

‘

‘

“
