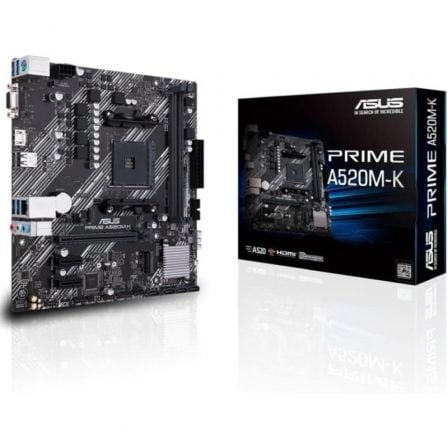

Placa Base Asus Prime A520M-K Socket AM4/ Micro ATX

«

Placa Base micro ATX AMD A520 (Ryzen AM4) con soporte M.2, Ethernet de 1 Gb, HDMI / D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Tipo A

‘

‘
• Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.

‘

• Enfriamiento completo: Disipador de Chipset y Fan Xpert.

‘

• Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.

‘

• 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.

‘

‘

‘
• Model

‘

• PRIME A520M-K

‘

• CPU

‘

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *

‘

• * Refer to www.asus.com for CPU support list.

‘

• Chipset

‘

• AMD A520

‘

• Memoria

‘

• 2 x DIMM, Max. 64GB, DDR4 ‘4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133’ MHz Un-buffered Memory *

‘

• Dual Channel Memory Architecture

‘

• ECC Memory (ECC mode) support varies by CPU.

‘

• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

‘

• Gráficos

‘

• 1  x D-Sub

‘

• 1  x HDMI 2.1(4K@60HZ)

‘

• Slots de Expansión

‘

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

‘

• 1 x PCIe 3.0 x16 (x16 mode)

‘

• AMD A520 Chipset

‘

• 2 x PCIe 3.0 x1

‘

• Almacenamiento

‘

• Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports

‘

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :

‘

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

‘

• AMD A520 Chipset :

‘

• 4 x SATA 6Gb/s port(s),

‘

• Support Raid 0, 1, 10

‘

• LAN

‘

• Realtek RTL8111H 1Gb Ethernet

‘

• ASUS LANGuard

‘

• Audio

‘

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *

‘

• – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

‘

• Audio Feature :

‘

• – Audio Shielding

‘

• – Dedicated audio PCB layers

‘

• * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

‘

• Puertos USB

‘

• Rear USB Port ( Total 6  )

‘

• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

‘

• 2 x USB 2.0 port(s)(2 x Type-A)

‘

• Front USB Port ( Total 6  )

‘

• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

‘

• 4 x USB 2.0 port(s)(4 x Type-A)

‘

• Software Features

‘

• ASUS Exclusive Software

‘

• Armoury Crate

‘

• AI Suite 3

‘

• – Performance and Power Saving Utility

‘

• TurboV EVO

‘

• EPU

‘

• Digi+ VRM

‘

• Fan Xpert

‘

• – EZ update

‘

• ASUS CPU-Z

‘

• AI Charger

‘

• DAEMON Tools

‘

• Norton Anti-virus software (Free Trial for 60 days)

‘

• WinRAR

‘

• UEFI BIOS

‘

• ASUS EZ DIY

‘

• – ASUS CrashFree BIOS 3

‘

• – ASUS EZ Flash 3

‘

• – ASUS UEFI BIOS EZ Mode

‘

• ASUS Special Features

‘

• ASUS 5X PROTECTION III

‘

• – ASUS DIGI+ VRM

‘

• – ASUS LANGuard

‘

• – ASUS Overvoltage Protection

‘

• – ASUS SafeSlot Core

‘

• – ASUS Stainless-Steel Back I/O

‘

• ASUS Q-Design

‘

• – ASUS Q-DIMM

‘

• – ASUS Q-Slot

‘

• ASUS Thermal Solution

‘

• – Aluminum heatsink design

‘

• Puertos I/O Traseros

‘

• 1 x PS/2 keyboard/mouse combo port(s)

‘

• 1 x D-Sub

‘

• 1 x HDMI

‘

• 1 x LAN (RJ45) port(s)

‘

• 4 x USB 3.2 Gen 1 (blue) Type-A

‘

• 2 x USB 2.0

‘

• 3 x Audio jack(s)

‘

• Internal I/O

‘

• 1 x CPU Fan connector(s)

‘

• 1 x Chassis Fan connector(s)

‘

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

‘

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

‘

• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

‘

• 1 x SPI TPM header

‘

• 4 x SATA 6Gb/s connector(s)

‘

• 1 x S/PDIF out header(s)

‘

• 1 x 24-pin EATX Power connector(s)

‘

• 1 x 8-pin EATX 12V Power connectors

‘

• 1 x Front panel audio connector(s) (AAFP)

‘

• 1 x Clear CMOS jumper(s)

‘

• 1 x System panel connector

‘

• 1 x COM port header

‘

• 1 x Speaker connector

‘

• Accessorios

‘

• User´s manual

‘

• I/O Shield

‘

• 2 x SATA 6Gb/s cable(s)

‘

• 1 x Supporting DVD

‘

• 1 x M.2 SSD screw package(s)

‘

• BIOS

‘

• 256 Mb Flash ROM, UEFI AMI BIOS

‘

• Capacidad de gestión

‘

• WOL by PME, PXE

‘

• Sistema Operativo

‘

• Windows® 10 64-bit

‘

• Factor de forma

‘

• mATX Form Factor

‘

• 8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )

«
